Gloria Steel

1.        Applications:

Forging dies of all types, hammer forging dies up to largest dimensions, tools for tube and rod extrusion such as rams, bolsters, mandrels, plungers, sleeves, die holders, backing plates, chipping beds, press dies for mould parts, deep engraving dies, containers for die casting presses, hot forming dies, bending and heavy embossing tools, hot mill rolls, hammers and pile drivers, hot punching tools, very hard cold work dies and punches, hot shear blades, blocks for dies, forging

saddles, pressing spindles, shrink rings, armoured trim dies, hydro forming tools, plastic moulds, hot gripper and heading dies.

2.        Chemical analysis:

3.        Mechanical Properties:

Cr-Ni-Mo alloyed hot work tool steel with high temperature impact toughness and thermal fatigue strength, resistant to repeated shocks, high resistant to tempering, medium wear resistance, oil and air hardening with good through harden-ability, low P and S content, polishable. Suitable for pitting and chrome plating. This grade is produced on request annealed or quenched and tempered condition.

4.        Compared grades, based on usage:

5.        Condition of delivery:

1.      Soft annealed to max 248 HB

2.      Quenched and tempered, 1100-1350MPa.

6.        Available sizes:

   Round Bar: Φ 12-410mm

   Flat: 8-160*205-710mm

   Mould: 200*200-1200*1000mm

   Length: 3000-12000mm

Mill deliver conditions, or sawing or cutting for customer request.

7.        Physical properties:

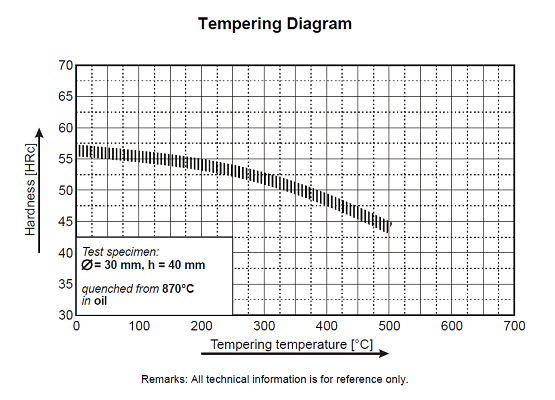

8.        Heattreatment:

Hardness after quenching :

 52 - 58 HRC, Oil

 44 - 50 HRC, Air
